A supervisor tells a crew a task requires “CAT 3” gear before anyone touches a panel that day. Most of the crew nods and goes to grab the bulkier suit from the locker, without necessarily knowing what the label actually means or why this particular task calls for it over the usual coveralls.
What is CAT 3 FR clothing? At its core, it is a specific level of arc-rated protective clothing built to withstand a much higher amount of electrical arc flash energy than the everyday gear most workers wear.
Key Takeaways
-
CAT 3 FR clothing is arc-rated protective clothing certified to a minimum arc rating of 25 cal/cm² under the NFPA 70E PPE category method.
-
A full CAT 3 system includes a flash suit jacket and bib overalls, an arc-rated hood, a Class H hard hat, and double-layer arc-rated gloves with leather protectors.
-
CAT 3 is required only for tasks where an incident energy assessment identifies that level of hazard, not for general electrical work by default.
-
Arc flash events can generate extreme heat almost instantly, which is why the CAT system exists to match protective gear to the actual energy a task could release.
What Is CAT 3 FR Clothing? The Short Answer
CAT 3 FR clothing is arc-rated protective clothing certified to withstand a minimum of 25 cal/cm² of arc flash energy, as defined by the NFPA 70E PPE category method. It is required for electrical tasks where an incident energy assessment identifies a significantly higher hazard than the level CAT 1 or CAT 2 gear is built to handle.
Why the CAT System Exists in the First Place
An arc flash happens when electrical current leaves its intended path and travels through the air, releasing an enormous amount of heat and light almost instantly. Arc flash temperatures can reach upward of 35,000 degrees Fahrenheit at the point of the fault, hot enough to ignite clothing and cause severe burns to anyone nearby without the right protection. That number is not a worst-case exaggeration. It reflects how quickly an arc flash event can outpace a worker’s ability to react.
Because incident energy varies enormously depending on voltage, fault current, and how quickly a circuit clears, a single PPE standard would either underprotect high-risk tasks or overprotect low-risk ones. The CAT system solves that by assigning increasing levels of protection, CAT 1 through CAT 4, to match increasing levels of potential arc flash energy. CAT 3 sits toward the higher end of that range, well above what most everyday electrical maintenance work requires.

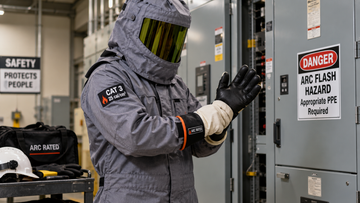

What a Full CAT 3 System Includes
CAT 3 is not a single garment. It is a complete clothing system, and every piece matters as much as the arc rating printed on the label.
|
Component |
Role in the System |
|---|---|
|
Flash suit jacket and bib overalls |
Provide full torso, arm, and leg coverage rated to at least 25 cal/cm² |
|
Arc-rated hood |
Replaces a standard face shield, covering the head and neck completely |
|
Class H hard hat |
Rated for high-voltage electrical work under the hood |
|
Double-layer arc-rated gloves with leather protectors |
Add hand protection beyond what single-layer CAT 2 gloves provide |
Mixing pieces from different categories, a CAT 3 jacket paired with CAT 1 gloves, for example, breaks the system and can leave real gaps in protection even though part of the outfit carries the higher rating.
When CAT 3 Is Actually Required
CAT 3 gear applies to electrical tasks where an incident energy assessment finds a higher hazard level than typical panelboard or lighting-control work. That often includes certain switchgear operations, higher-voltage equipment, and systems where fault current or clearing time push the calculated incident energy above the CAT 2 threshold. Utility substations and larger industrial motor control centers are common settings where this level of exposure shows up.
The determination should always come from a documented hazard assessment, either NFPA 70E’s equipment-based PPE category tables under specific voltage and fault current conditions, or a full incident energy calculation following IEEE 1584 methodology. CAT 3 is a real, necessary requirement for the tasks that call for it, and an unnecessary burden, in cost, heat stress, and reduced mobility, for the ones that don’t.
Common Misconceptions About CAT 3 Clothing
A few myths about CAT 3 gear tend to spread faster than the correction does.
Do This, Not That
-
Do confirm CAT 3 is required by an actual hazard assessment. Not: assume it applies to all electrical work by default.
-
Do wear the complete matched system, jacket, bib, hood, gloves. Not: mix pieces from different categories and assume it still counts.
-
Do treat the arc-rated hood as required equipment. Not: substitute a standard face shield because it feels less restrictive.
-
Do check the actual arc rating printed on the garment. Not: assume any bulky-looking suit automatically qualifies as CAT 3.
A Common Scenario: The Borrowed Jacket
Consider a composite example based on a pattern safety officers report often. A technician assigned to a CAT 3 task grabs a flash suit jacket from a shared locker but pairs it with CAT 2 gloves left over from a previous shift, assuming any arc-rated glove is close enough for a quick job. A safety audit later flags the mismatch, since the gloves were rated well below the 25 cal/cm² threshold the task actually required. The fix: treating CAT 3 as a complete system that gets issued and checked together as a set, not assembled piece by piece from whatever happens to be available in the locker.
Conclusion: What Is CAT 3 FR Clothing, in Practice?
What is CAT 3 FR clothing? It is a complete arc-rated protective system, certified to a minimum of 25 cal/cm², built for electrical tasks where a documented hazard assessment identifies a genuinely higher incident energy risk. It includes a flash suit jacket and bib overalls, an arc-rated hood, a Class H hard hat, and double-layer gloves, all working together rather than as separate pieces. The label only means something when the full system, and the hazard assessment behind it, are both in place.
Talk Through Your PPE Category Needs
Salus Wear’s current FR shirts and pants are built to CAT 2 specifications, suited to many common electrical and industrial tasks.
Next step: Browse FR shirts and safety workwear, or contact our team to discuss which protection level fits your specific hazard assessment.
Frequently Asked Questions
What arc rating does CAT 3 FR clothing require?
CAT 3 requires a minimum arc rating of 25 cal/cm², certified under the NFPA 70E PPE category method.
What does a full CAT 3 clothing system include?
A complete CAT 3 system includes a flash suit jacket and bib overalls, an arc-rated hood, a Class H hard hat, and double-layer arc-rated gloves with leather protectors.
Is CAT 3 required for all electrical work?
No. CAT 3 is required only for specific tasks where an incident energy assessment identifies a hazard level above what CAT 2 gear is designed to handle.
How is CAT 3 different from CAT 2?
CAT 3 requires a higher minimum arc rating, 25 cal/cm² compared to 8 cal/cm² for CAT 2, and a bulkier clothing system that includes a hood and bib overalls instead of a coverall and face shield.
Can I substitute a standard face shield for the hood in a CAT 3 system?
No. CAT 3 requires an arc-rated hood that covers the head and neck completely, which provides more protection than a standard face shield alone.
How do employers determine if a task requires CAT 3?
Through a documented hazard assessment, using either NFPA 70E’s equipment-based PPE category tables or a full incident energy calculation following IEEE 1584 methodology.
Can I mix a CAT 3 jacket with lower-rated gloves or accessories?
No. Mixing components from different categories can leave real protection gaps, even if part of the outfit carries a higher arc rating.
How hot can an arc flash actually get?
Arc flash temperatures can reach upward of 35,000 degrees Fahrenheit at the point of the fault, which is why matching protective gear to the actual hazard matters so much.
Does Salus Wear offer CAT 3 rated clothing?
Salus Wear’s current FR shirts and pants are built to CAT 2 specifications. For CAT 3 or higher requirements, reach out through the contact page to discuss the right solution for your hazard assessment.
